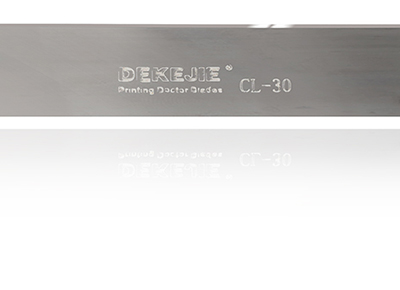

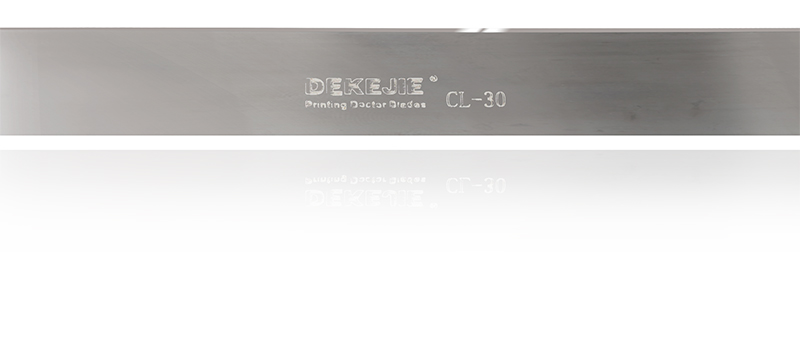

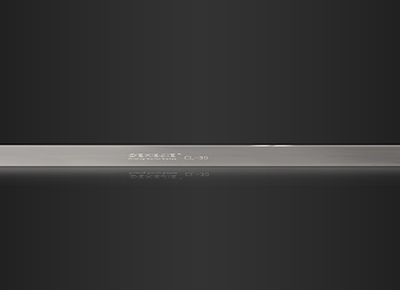

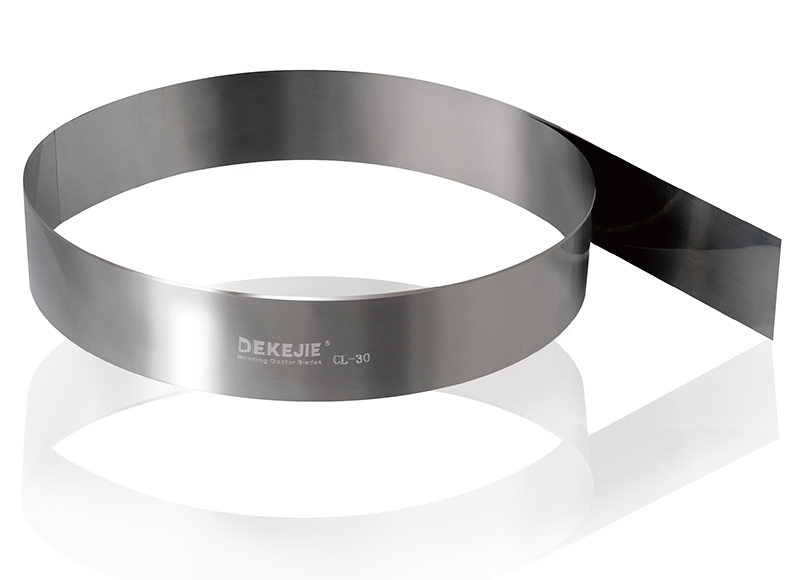

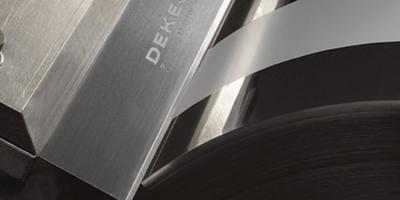

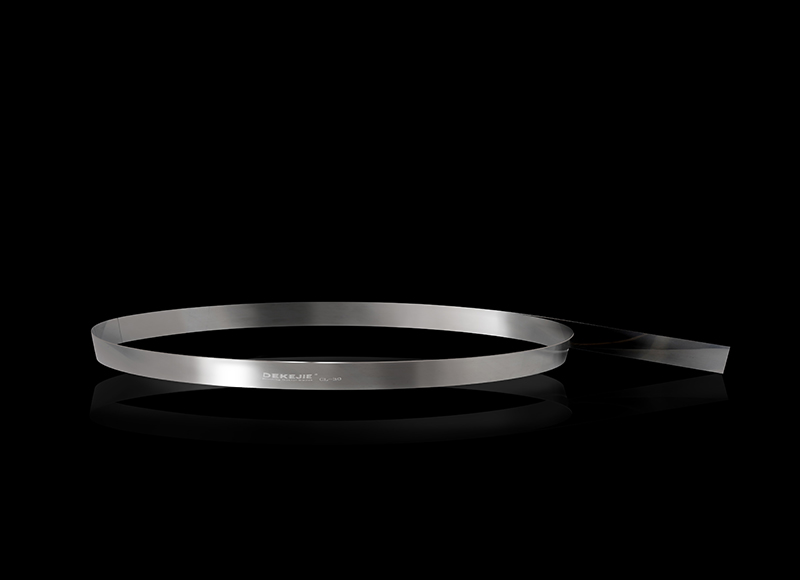

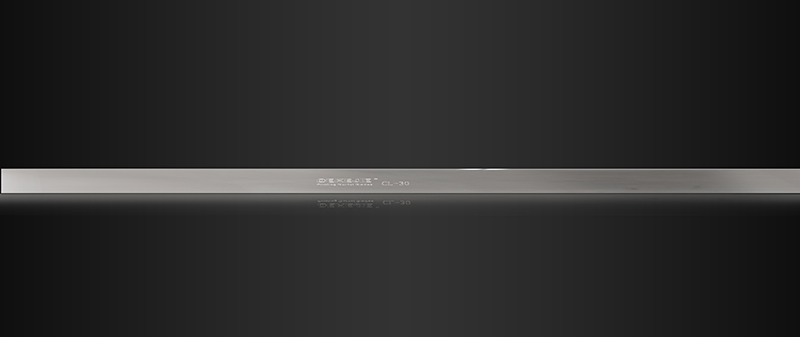

Carbon Steel Blade, Item CL-30 Doctor Blade

The CL-30 carbon steel blade features superior abrasion resistance compared to the CL-20 doctor blade and uses high quality, German ZAPP 2067 cold rolling carbon steel with overall performance that is 20% better than the base materials of the CL-20. This ensures the CL-30 blade effectively removes greater amounts of ink to ensure a clear printing result.

A heat treatment process has improved the durability and corrosion resistance of the blade, making it suitable for 250m/minute and higher printing press speeds, as well as for use in a variety of other printing presses to remove excess ink.

Tensile strength: 1800-2000 N/mm²
Hardness: 580-600HV
Linearity: 0.15mm/1m

• The hardness levels of the CL-30 blade and CL-20 blade are the same. Blades with a high hardness reduce wear on the cylinder and anilox rollers.
• An improved microstructure gives the blade a better durability and reduces burrs in the blade edge.
• The precise polishing process prevents ink impurities from sticking to the blade surface, thus ensuring a clearer print pattern.
• Compared to CL-20, the blade is more stable in property and its service life can be up to 180000 cylinder rph for black printing.

Note: The above data is standard sizes only. We can customize blade sizes according to customer requirements.

Application
Printing machine: HP, Heidelberg, Koenig&Bauer AG, Komori, Beiren, Manroland, RMGT, etc.
Coating machine: Joinfun, Graco, SATA, Anest Iwata, Hongda, etc.
Rotary printing machine: Dingli, Lisheng, Zhishang, Hengfan, Nashuo, etc.
